Importing EPS Pre Expander Machine from China

Are you tired of finding the proper EPS pre expander machine for your project? We can provide the wholesale EPS expander machine to meet your requirements, and please feel free to contact us at any time if you are interested.

Our EPS Pre Expander Machine

Our EPS Pre-Expander Machine, also named EPS pre-expander machine, offers precise control and efficient production of Expanded Polystyrene (EPS) foam beads.

With advanced technology and customizable features, it ensures uniform expansion, high productivity, and energy efficiency. Built for durability and ease of use, it delivers consistent quality while minimizing downtime. Trusted by industry leaders, our machine sets the standard for EPS pre-expansion, making it the ideal choice for businesses seeking reliable foam bead production.

Optimized Expansion Process: Our EPS pre-expander machine is designed to provide precise control over the expansion process, ensuring consistent and uniform foam bead production. With advanced technology and intelligent automation, it delivers superior results compared to traditional pre-expansion methods.
Efficiency and Productivity: Our machine offers high throughput and efficiency, allowing for rapid expansion of EPS beads without compromising on quality. This increased productivity translates to higher output and reduced production time, maximizing operational efficiency.
Customization and Versatility: We understand that different applications require specific foam densities and characteristics. Our EPS pre-expander machine can be customized to meet the unique requirements of each customer, allowing for flexibility in foam density, bead size, and expansion ratio.
Energy Efficiency: We prioritize energy efficiency in our machine design, incorporating innovative features to minimize energy consumption during the pre-expansion process. By optimizing steam usage and thermal insulation, our machine reduces operational costs and environmental impact.
Quality Assurance: Our machine is engineered to deliver consistent and reliable performance, adhering to stringent quality standards. Each foam bead produced undergoes rigorous testing to ensure uniformity, stability, and adherence to customer specifications.

Two types of ePS pre expander Machine

Batch EPS Pre-Expander Machine

Batch EPS pre-expander machine loading a batch of EPS beads into a pressure vessel. The vessel is then sealed and steam is injected to heat the beads. Once the beads reach the desired temperature, they are rapidly depressurized, which causes them to expand. The expanded beads are then unloaded from the vessel and stored in a silo until they are needed for molding.

Continuous Pre-Expander Machine

This continuous EPS pre-expander machine works by continuously feeding EPS beads into a screw conveyor. The beads are heated as they travel through the conveyor and are then rapidly depressurized at the end of the conveyor. The expanded beads are then collected and stored in a silo.

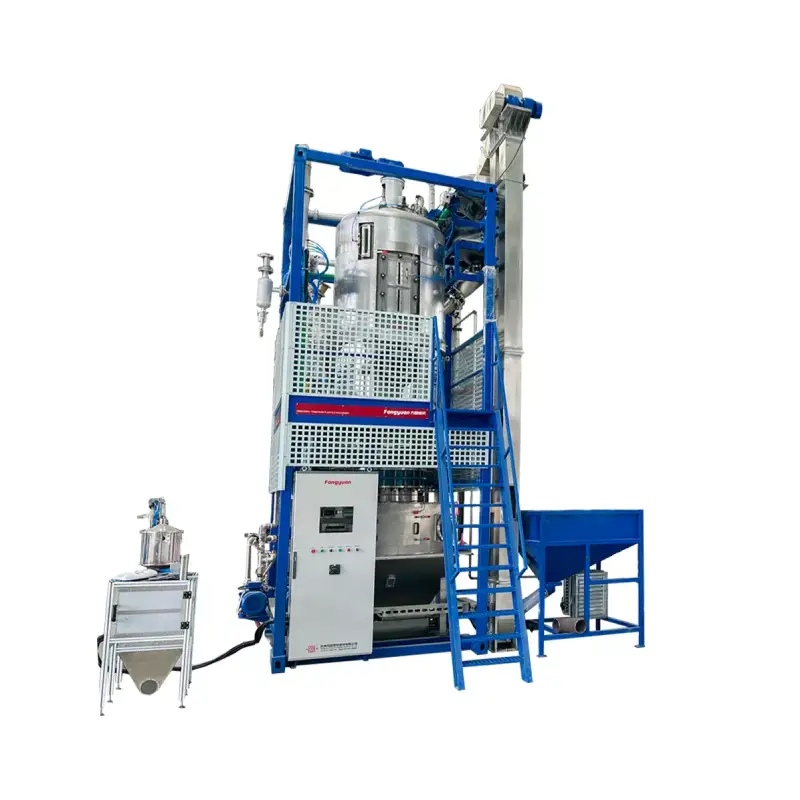

Vertical EPS Pre-Expander Machine

Our vertical EPS pre-expander machines are designed for high-volume production, offering increased capacity and efficiency. The vertical design allows for more compact operation, making them ideal for companies looking to optimize space. These machines expand EPS beads quickly, providing output for various foam products like insulation and packaging.

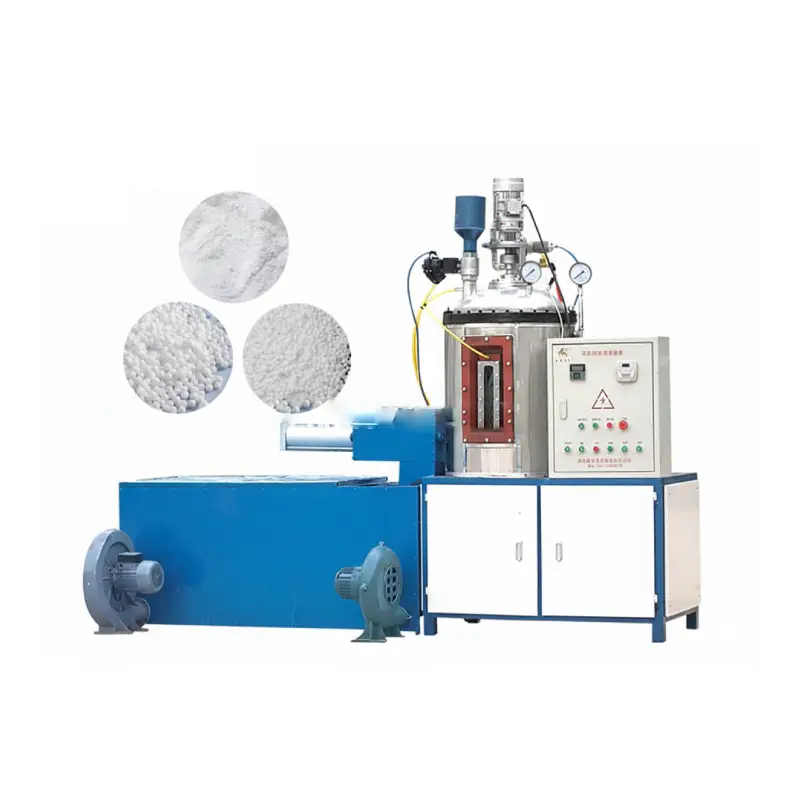

customized EPS Pre-Expander Machine

We offer customized EPS pre-expander machines tailored to meet your specific production needs. Our machines are designed for optimal efficiency, offering precise control over the expansion process. Whether you need a machine for small-scale or large-scale operations, we ensure that the equipment meets your quality standards and production goals.

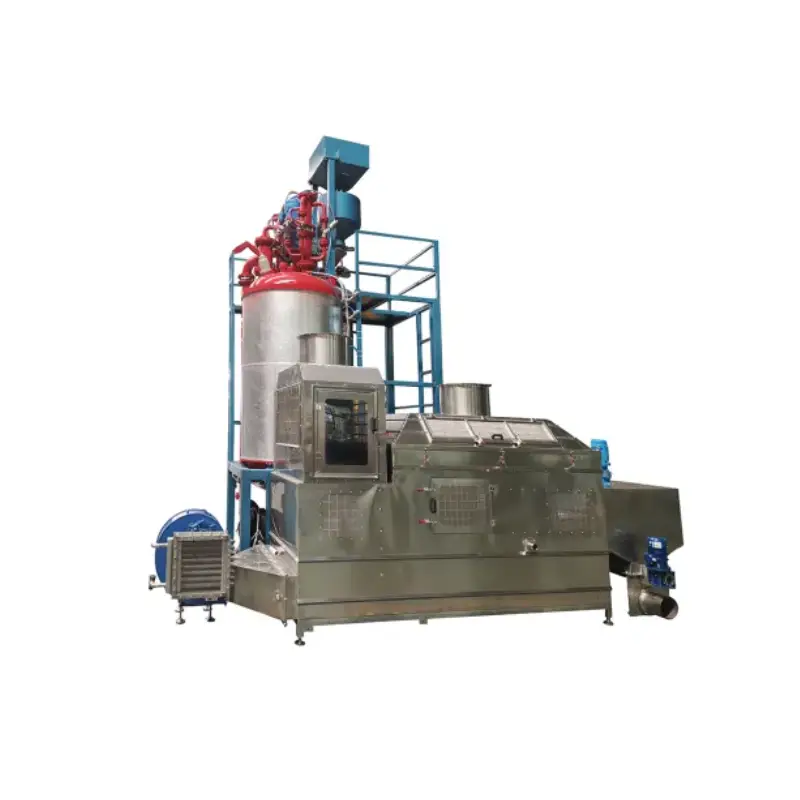

EPS batch pre-expander with fluidizing bed

We offer an EPS batch pre-expander with a fluidizing bed, designed to provide uniform expansion and optimal bead quality. This machine efficiently expands EPS beads in a controlled environment, ensuring consistent density and high output. It’s ideal for small to medium production runs, providing excellent results in foam packaging and insulation.

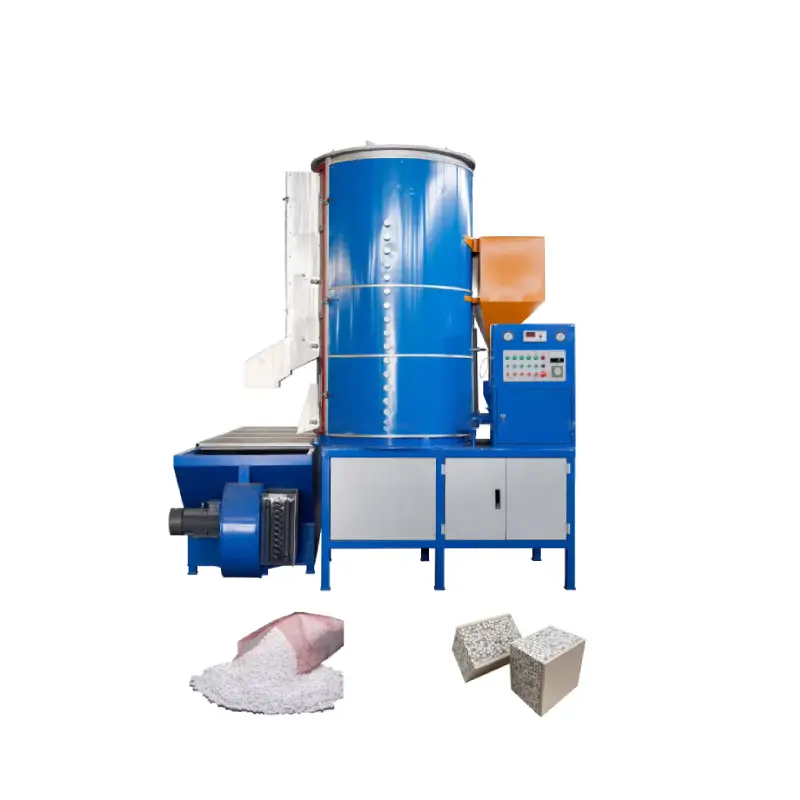

continuous pre expander PLC-controlled foam machine

We offer continuous pre expander PLC-controlled foam machines that ensure high efficiency and consistent expansion of EPS beads. With precise PLC control, these machines provide automated operation, reducing manual labor and increasing production speed. They are ideal for large-scale manufacturing of foam products with uniform density and quality.

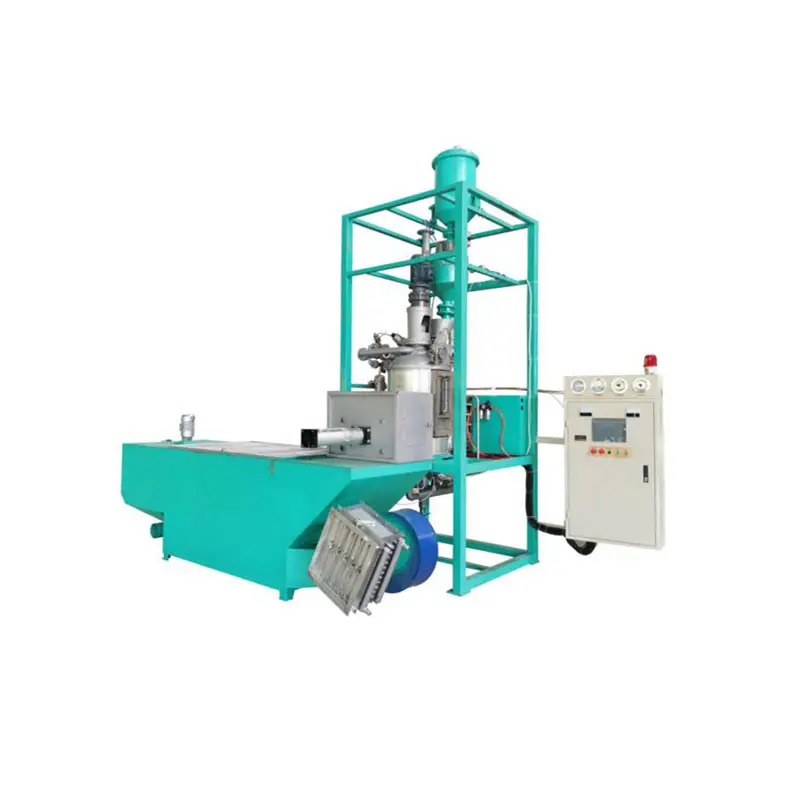

EPS batch pre-expander machine for helmet

We offer an EPS batch pre-expander machine designed specifically for EPS helmet production. This machine ensures uniform expansion of EPS beads, providing the necessary consistency for helmet padding. It offers precise control over density, ensuring optimal performance and safety. Our machine is reliable, efficient, and ideal for high-quality helmet manufacturing.

Why Choose Our EPS Pre Expander Machine

Efficiency: Our EPS recycling machine is designed for maximum efficiency, ensuring rapid processing of expanded polystyrene (EPS) waste into reusable materials. With advanced technology and innovative features, our machine streamlines the recycling process, saving you time and resources.
Quality Output: We prioritize the quality of recycled EPS materials produced by our machine. Through precision engineering and high-quality components, we ensure that the recycled EPS meets industry standards and customer expectations. You can trust our machine to deliver superior recycled materials for your specific applications.
Sustainability: Choosing our EPS recycling machine demonstrates your commitment to sustainability and environmental responsibility. By recycling EPS waste with our machine, you contribute to the reduction of plastic pollution, conserve natural resources, and promote a circular economy. Together, we can make a positive impact on the planet.
Support and Service: When you choose our EPS recycling machine, you gain access to dedicated support and service from our team of experts. From installation and training to maintenance and troubleshooting, we’re here to help you maximize the performance and longevity of your recycling equipment.

what is EPS Pre Expansion?

The EPS pre-expansion process is a fundamental stage in the production of expanded polystyrene (EPS) foam. It involves transforming small, dense EPS beads into much larger, lighter particles. This transformation is achieved by applying heat, typically in the form of steam, to the beads. This heat activates a blowing agent within the beads, causing them to expand significantly. The result is a collection of pre-expanded beads, often referred to as “prepuff,” which serve as the raw material for subsequent molding processes.

The control of the pre-expansion process is crucial for achieving the desired density and properties of the final EPS product. Factors such as steam temperature, pressure, and the duration of the expansion process are carefully managed. Variations in these parameters allow manufacturers to tailor the density of the prepuff to meet the specific requirements of different applications, ranging from lightweight packaging to high-insulation building materials. This precision in pre-expansion directly impacts the quality and performance of the final molded EPS products.

What is an EPS Pre-Expander Machine?

An EPS pre-expander machine is specialized equipment used to expand small polystyrene beads into lightweight, air-filled beads before molding. It controls steam, pressure, and temperature to ensure uniform expansion. This machine is essential for producing EPS foam blocks with consistent density, strength, and insulating properties for packaging, construction, and industrial applications.

Purpose and function: The machine’s primary function is to pre-expand EPS beads uniformly. By softening and expanding the beads with steam, it creates air pockets that determine foam density and insulation properties. Consistent pre-expansion is crucial for producing strong, lightweight, and reliable EPS products.
Components: A typical EPS pre-expander machine includes a hopper for bead loading, a pre-expansion chamber, steam and pressure controls, and a discharge system. These components work together to heat, expand, and stabilize the beads efficiently, ensuring smooth operation and consistent quality output.
Efficiency advantages: Using a pre-expander reduces manual handling and speeds up production. Automated control of temperature, pressure, and steam flow allows precise bead expansion, minimizing material waste and energy consumption. This efficiency is especially important for large-scale EPS foam manufacturing.
Integration with production line: The pre-expanded beads can be stored or directly fed into molding machines. This integration streamlines the manufacturing process, reduces production downtime, and ensures uniform EPS blocks. It supports high-volume production while maintaining quality and consistency in the final products.

EPS Pre Expansion Process

The EPS pre-expansion process is a critical initial phase in manufacturing expanded polystyrene foam. It’s where tiny beads are transformed into larger, lighter particles, setting the stage for final molding. This process involves careful control over several variables to achieve the desired material properties.

Step 1: Raw Material Preparation

Initially, raw EPS beads, containing a blowing agent, are fed into the pre-expander. These beads are typically small, dense spheres of polystyrene. Before entering the pre-expander, the beads are often stored in silos or hoppers, ensuring a consistent supply. The quality and uniformity of these raw beads are crucial for achieving consistent pre-expansion and final product quality.

Step 2: Steam Application

Within the pre-expander, the beads are exposed to steam. The heat from the steam activates the blowing agent within the EPS beads, typically pentane. This activation causes the blowing agent to vaporize, leading to a significant increase in the volume of the beads. The steam’s temperature and pressure are carefully controlled to regulate the expansion rate and final size of the pre-expanded beads.

Step 3: Expansion and Size Control

As the beads expand, they are carried through the pre-expander by a controlled airflow. The residence time of the beads within the pre-expander, along with the steam parameters, determines the final size and density of the pre-expanded beads. EPS Manufacturers use various mechanisms, such as adjustable airflow and retention screens, to control the expansion process and achieve the desired bead size distribution. This control is essential for ensuring uniform density in the final molded EPS product.

Step 4: Cooling and Stabilization

After exiting the pre-expander, the pre-expanded beads are cooled and stabilized. This cooling process helps to solidify the expanded structure and prevent further expansion. The beads are typically conveyed through a cooling system, often using ambient air or forced air, to reduce their temperature. Stabilization is crucial for achieving consistent density and dimensional stability in the final molded EPS product. After cooling, the pre-expanded beads, now much larger and lighter, are stored for subsequent molding processes.

How does an EPS Pre-Expander Machine work?

An EPS pre-expander machine transforms small polystyrene beads into lightweight, expanded beads ready for molding. It uses controlled steam, temperature, and pressure to soften and expand the beads uniformly. This process creates air pockets inside each bead, determining the foam’s density, strength, and insulating properties for various packaging, insulation, and industrial applications.

Loading and steaming: Polystyrene beads are fed into the pre-expander hopper. Steam is introduced to heat and soften the beads, causing them to expand. Proper temperature and timing ensure uniform bead expansion, which is critical for producing consistent EPS blocks with the desired density and size.
Controlled expansion: Inside the machine, the beads continue to expand under regulated pressure. This stage allows you to control the final bead density. Consistent expansion ensures that molded EPS products maintain uniform strength, thermal insulation, and cushioning properties across the entire batch.
Air circulation and cooling: After expansion, the beads are cooled and stabilized using controlled airflow. Proper cooling prevents bead collapse, ensures uniform size, and prepares them for storage or immediate molding. This step maintains quality and consistency in subsequent production stages.
Discharge and collection: Fully expanded beads are discharged into storage silos or directly sent to molding machines. Efficient discharge prevents bead sticking or clumping. The uniform, pre-expanded beads are now ready for vertical or horizontal molding, ensuring smooth, high-quality EPS production.
Optional density adjustment: Some machines allow fine-tuning of expansion levels to achieve specific bead densities. This feature is useful for creating lightweight or high-strength foam products. Adjustable settings enhance versatility, allowing manufacturers to produce EPS for diverse applications with consistent performance.

What are the benefits of using an EPS Pre-Expander Machine?

Using an EPS pre-expander machine improves efficiency, consistency, and quality in foam production. It allows you to control bead expansion, density, and size precisely, ensuring uniform EPS blocks for packaging, insulation, and custom applications. This EPS expander machine streamlines production, reduces waste, and supports large-scale manufacturing with reliable performance and cost-effective operation.

Consistent bead expansion: The machine ensures uniform pre-expansion of EPS beads, producing consistent size and density. This uniformity is critical for high-quality molding and final products. Reliable expansion reduces defects, minimizes material waste, and improves overall production efficiency in packaging, insulation, and industrial foam applications.
Customizable density control: EPS pre-expanders allow you to adjust bead density according to product requirements. Whether you need lightweight foam for insulation or denser blocks for structural applications, the machine provides precise control. This flexibility supports diverse product lines and enhances manufacturing versatility.
Improved production efficiency: By automating bead expansion, the machine reduces manual labor and speeds up the process. Faster pre-expansion leads to higher throughput, enabling you to meet larger orders without compromising quality. It optimizes workflow and reduces production downtime significantly.
Energy and cost savings: Efficient steam usage and controlled expansion reduce energy consumption compared to less precise methods. Lower energy costs and minimized raw material waste make production more cost-effective. The machine delivers consistent results while maximizing resource utilization and operational efficiency.
Enhanced product quality: Pre-expanded beads fuse more evenly during molding, resulting in stronger, more uniform EPS blocks. This improves insulation, shock absorption, and structural integrity of the final products. High-quality output ensures better customer satisfaction and reduces returns or material defects.

What types of EPS beads can be processed by the machine?

EPS pre-expander machines can process various types of polystyrene beads, allowing manufacturers to produce foam with different densities, sizes, and applications. The versatility of the machine ensures it can handle standard, expandable, and specialty beads, providing consistent expansion and quality for packaging, insulation, and custom-shaped EPS products.

Standard EPS beads: These are the most commonly used polystyrene beads suitable for general-purpose foam production. They expand uniformly under steam, producing lightweight and durable EPS blocks. Standard beads are ideal for packaging, insulation panels, and everyday industrial applications, offering consistent performance across multiple manufacturing cycles.
Expandable beads: These beads contain blowing agents that increase expansion capacity when heated. They are perfect for creating low-density EPS foam with excellent insulation and cushioning properties. Expandable beads allow manufacturers to control final block density and achieve customized foam characteristics for specialized applications.
High-density beads: Designed for applications requiring stronger or more compact foam, high-density beads expand less than standard types but produce rigid, durable blocks. They are commonly used in structural insulation, heavy-duty packaging, and industrial components, providing added strength and stability.
Color or additive beads: Some EPS beads include colorants, flame retardants, or anti-static additives. Pre-expander machines can handle these modified beads without affecting expansion quality. This allows manufacturers to produce visually appealing, safe, or functional foam products tailored to specific industry requirements.
Micro or fine beads: Smaller-sized polystyrene beads can also be processed for producing fine or detailed foam shapes. The machine ensures uniform expansion and fusion, making it suitable for craft items, model-making, or intricate packaging inserts where precision and surface finish are important.

Is training provided for operating the EPS Pre-Expander Machine?

Yes, we offer training programs for operators to ensure they are proficient in operating the machine safely and efficiently. Our training covers machine operation, maintenance procedures, safety protocols, and troubleshooting techniques.
