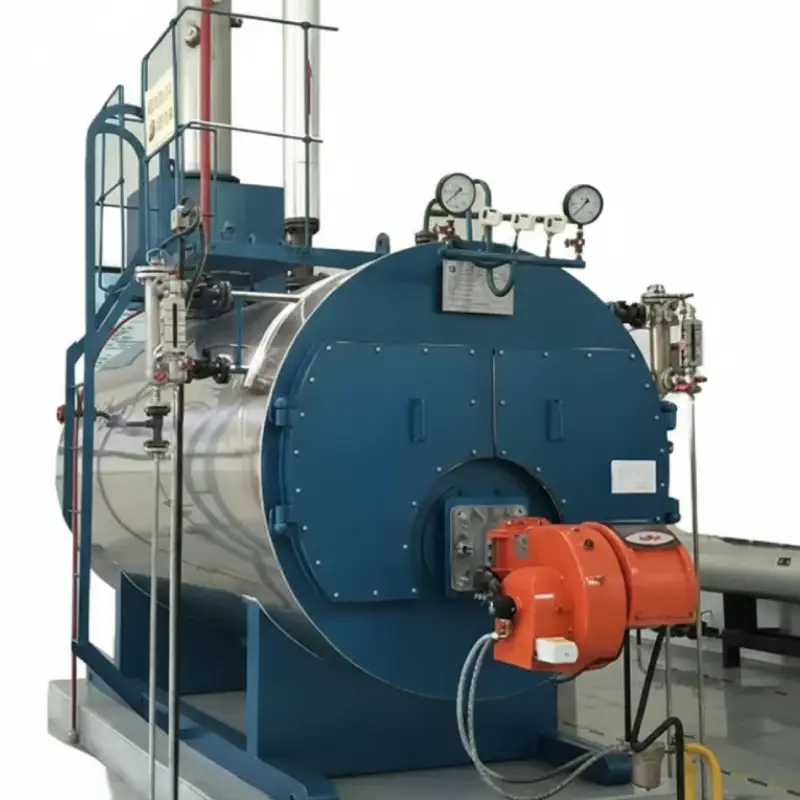

Steam Boiler

A steam boiler is a closed vessel that heats water to produce steam, utilized for heating, power generation, or industrial processes. It operates by transferring heat from a fuel source to the water, generating pressurized steam used in diverse applications.

Steam Boiler Parameters

Output	4000kg per hour
Steam Pressure	1.25Mpa
Steam temperature	194℃
Efficiency	≥92%
Fuel	light diesel oil
Fuel Consumption	light diesel oil: 303kg/hr
Electric power	8kw
Dimensions	L4949xW2200xH2646mm
Total weight	8.6tons
Control Voltage	240V/50Hz/2N
Operating Voltage	415V/50Hz/3N
Water volume	8m3
Chimney diameter	450mm

Advantages of Steam Boilers: Efficiency, Reliability, and Performance

Steam boilers offer a multitude of benefits that make them a powerful choice for various applications. Here’s a breakdown of some key advantages based on the information you provided:

1. Enhanced Steam Quality and Efficiency:

Large steam room and high-quality steam: This translates to a consistent and reliable supply of clean, dry steam for your needs.
High evaporation area: This ensures efficient water-to-steam conversion, maximizing steam production and reducing energy waste.

2. Superior Heat Transfer and Operational Stability:

Horizontal structure with adequate heating: This design promotes even heat distribution throughout the boiler, leading to optimal heat transfer and efficient fuel combustion.
Full heat transfer: Minimal heat loss within the boiler translates to higher overall efficiency.
Stable operation under load changes: The boiler maintains consistent performance even with fluctuating demands, ensuring smooth operation.

3. Cost-Effective Performance:

High combustion efficiency: This means the boiler extracts maximum energy from the fuel, leading to significant fuel savings and lower operating costs.
Reduced NOx emissions: The unique combustion chamber design contributes to cleaner operation and environmental benefits.

4. User-Friendly Operation and Safety:

Automatic operation with PLC control: The boiler can be programmed and monitored for optimal performance, minimizing manual intervention.
Display of operating parameters and fault alarms: Real-time data and clear alerts provide valuable insights for better control and preventative maintenance.

5. Compact Design and Long Service Life:

Horizontal structure and reduced boiler size: This can save valuable space in your facility.
Purge function: Regular purging helps maintain optimal combustion conditions, extending the boiler’s lifespan.

Steam boilers offer a compelling combination of efficiency, reliability, user-friendly operation, and environmental benefits. Their ability to deliver high-quality steam, efficient heat transfer, and stable operation make them a strong choice for diverse industrial and commercial application.

Steam Boiler Applications

Steam boilers are the workhorses of many industrial processes, providing a reliable and powerful source of high-pressure steam for a wide range of applications. Here’s a deeper dive into some of the key industrial applications of steam boilers:

1. Power Generation: In thermal power plants, steam boilers are the heart of electricity generation. Fossil fuels (coal, natural gas) or nuclear energy heat water in the boiler to produce high-pressure steam. This steam spins turbines connected to generators, converting mechanical energy into electricity that powers our homes and businesses.

2. Chemical Manufacturing: The chemical industry relies heavily on steam for various processes. Steam provides a controllable and efficient heat source for:

Chemical Reactions: Many chemical reactions require specific temperature ranges. Steam heating offers precise control over reaction temperatures.
Distillation: Steam is used to separate desired chemicals from mixtures through a process called distillation.
Evaporation: Steam efficiently removes water from solutions to concentrate chemicals or dry products.

3. Food Processing: Steam plays a vital role in food processing for several reasons:

Sterilization: High-pressure steam effectively eliminates harmful bacteria and pathogens from food products, ensuring safety and extending shelf life.
Cooking and Blanching: Steam can be used for gentle cooking or blanching of vegetables and other food items, preserving nutrients and flavors.
Cleaning and Sanitation: Steam is a powerful tool for cleaning and sanitizing equipment and surfaces in food processing facilities.

4. Oil Refining: Steam is a key player in the complex process of oil refining. Here’s how it’s used:

Distillation: Similar to chemical processing, steam is used to separate various components of crude oil during the distillation process.
Visbreaking: Heavy oil fractions are heated with steam to reduce their viscosity and make them easier to process further.

5. Textile Industry: Steam is crucial for various textile processes, including:

Dyeing Fabrics: Steam effectively sets dyes in fabrics, ensuring colorfastness and quality.
Finishing Processes: Steam is used for tasks like setting wrinkles, shrinking fabrics, and shaping textiles.

6. Other Industrial Applications: Beyond these main examples, steam boilers find use in numerous other industrial applications, including:

Rubber and Plastic Processing: Steam is used for curing rubber products and shaping plastic components.
Sterilization in Pharmaceutical Industry: Steam ensures sterility of equipment and pharmaceutical products.
Wood Processing: Steam helps soften wood for processing and veneer production.
Paper Production: Steam plays a role in the pulping and drying processes of paper manufacturing.

By providing a clean, controllable, and efficient heat source, steam boilers are essential for a vast range of industrial processes. Their versatility, reliability, and ability to deliver high-pressure steam make them a cornerstone of modern industrial production.
